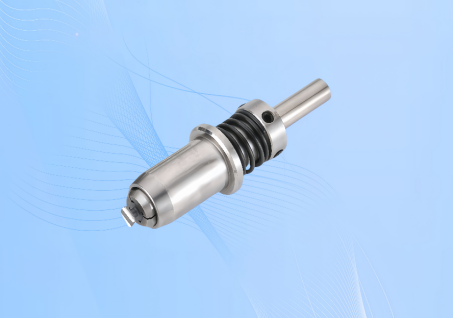

NR SMD Triple - Opening I - Shape Inductor Chuck by Dongguan Aoshuo Precision Mould Co., Ltd.

1. Company Introduction

Dongguan Aoshuo Precision Mould Co., Ltd. was established in 2008 and is strategically located at No. 1, Xinchun Road, Shangsha, Changan Town, Dongguan City, Guangdong Province, China. As a comprehensive mold parts supplier, we have been committed to the design and processing of high - precision mold parts and automated precision components. Leveraging our advanced technology and rich industry experience, our products have found wide applications in diverse fields, such as precision stamping molds, plastic molds, automotive molds, medical molds, precision computer connector molds, medical devices and equipment, and jigs. Over the years, we have built a solid and trustworthy reputation in the global market.

2. Core Business Overview

Our company offers a wide - ranging portfolio of core business services. The NR SMD triple - opening I - shape inductor chuck is a specialized and innovative product within our semiconductor - related component offerings. In addition to this, our business scope encompasses:

Mold Processing: We provide a comprehensive range of products, including hardware stamping mold parts, pressing mold parts, and PG seeds, catering to various mold - making needs.

Connector Mold Parts: Custom - made high - precision connector mold parts for the electronics industry, ensuring seamless connectivity in electronic devices.

Plastic Mold Parts: Mold components designed to meet the requirements of various plastic product manufacturing processes, from simple to complex plastic items.

Semiconductor Components: This category includes alloy chucks, tungsten steel fixture plates, winding molds, magnetic powder molds, tungsten steel wire nozzles, tungsten steel molds, and tensioners. The NR SMD triple - opening I - shape inductor chuck is an integral part of this segment, specifically serving the semiconductor manufacturing sector.

Fully Automatic Winding Alloy Chucks: An automated solution that significantly enhances production efficiency, enabling manufacturers to increase output while maintaining quality.

Precision Injection Mold Spare Parts: These parts ensure the accuracy and stability of the injection molding process, guaranteeing high - quality plastic - molded products.

Automation Components: All kinds of precision components that support industrial automation, facilitating the transformation of manufacturing processes.

Hardware Stamping Mold Spare Parts: High - quality hardware stamping parts suitable for mass production, meeting the demands of large - scale manufacturing projects.

3. NR SMD Triple - Opening I - Shape Inductor Chuck Details

3.1 Product Positioning

Our NR SMD triple - opening I - shape inductor chuck is uniquely designed for the semiconductor and electronics manufacturing industries. It is specifically engineered to handle and process NR - type surface - mount triple - opening I - shape inductors with utmost precision. Whether it's in high - volume production lines where speed and accuracy are crucial or in small - scale, precision - oriented manufacturing setups, this chuck provides the necessary support and control to ensure the proper handling and assembly of these specialized inductors.

3.2 Product Features

Enhanced Gripping Design: The triple - opening structure of the chuck is designed to provide an enhanced and balanced gripping force. It can firmly hold NR - type triple - opening I - shape inductors of different sizes and specifications, preventing any slippage or misalignment during the manufacturing process. This unique design ensures that the inductors are accurately positioned for subsequent operations, such as soldering, insertion into circuit boards, or other assembly processes.

Ultra - High Precision: Precision is the cornerstone of our product. Through meticulous design and advanced manufacturing techniques, the chuck can achieve extremely tight tolerances, allowing for the precise positioning of the SMD inductors. This high - level precision is essential for the production of high - quality electronic components, as it helps to minimize errors and ensure the optimal performance of the final products.

Robust and Durable Construction: Constructed from high - quality, special - grade alloys, the NR SMD triple - opening I - shape inductor chuck is highly durable. It can withstand the harsh conditions of continuous use in industrial manufacturing environments, including exposure to various chemicals, mechanical vibrations, and high - stress operations. This durability not only extends the lifespan of the chuck but also reduces the overall cost of ownership for our customers by minimizing the need for frequent replacements.

Broad Compatibility: Our chuck is designed with versatility in mind. It is compatible with a wide range of NR - type triple - opening I - shape SMD inductors available in the market. Whether it's inductors from different manufacturers or those with varying specifications, the chuck can easily adapt, making it a go - to choice for manufacturers dealing with multiple types of inductors in their production processes.

3.3 Production Advantages

State - of - the - Art Equipment: Aoshuo is equipped with the latest and most advanced production equipment. Our Makino and Beijing Jingdiao CNC machining centers, along with imported Japanese equipment such as Mitsubishi and Sodick, enable us to achieve the highest level of precision in the manufacturing of the NR SMD triple - opening I - shape inductor chuck. These machines are capable of creating complex geometries and achieving micron - level tolerances, ensuring the quality and performance of the final product.

Advanced Software - Driven Design: In the design phase, we utilize cutting - edge software such as UG, Pro - E, and AutoCAD. These software tools allow us to conduct in - depth design analysis, simulation, and optimization. We can virtually test the performance of the chuck under different conditions, identify potential issues, and make necessary adjustments before the actual production process begins. This software - driven approach ensures that the final product is not only highly functional but also optimized for production efficiency and cost - effectiveness.

Expert Team: Our team of engineers and technicians is at the heart of our success. With in - depth knowledge of semiconductor manufacturing and mold - making, they work closely with customers from the initial consultation stage. They understand the specific requirements of the industry and are responsible for every aspect of the chuck's design, processing, and quality inspection. Their expertise, combined with years of practical experience, guarantees that the delivered product meets and often exceeds customer expectations.

3.4 Application Areas

The NR SMD triple - opening I - shape inductor chuck is primarily used in the semiconductor manufacturing industry for the production of electronic components containing NR - type triple - opening I - shape SMD inductors. It is widely applied in the manufacturing of printed circuit boards (PCBs), where the accurate handling of these inductors is crucial for the proper functioning of the circuits. Additionally, it finds extensive use in the production of various electronic devices, including smartphones, tablets, laptops, and other consumer electronics. In the industrial and automotive electronics sectors, the chuck also plays a vital role in ensuring the reliable production of high - performance electronic systems.
